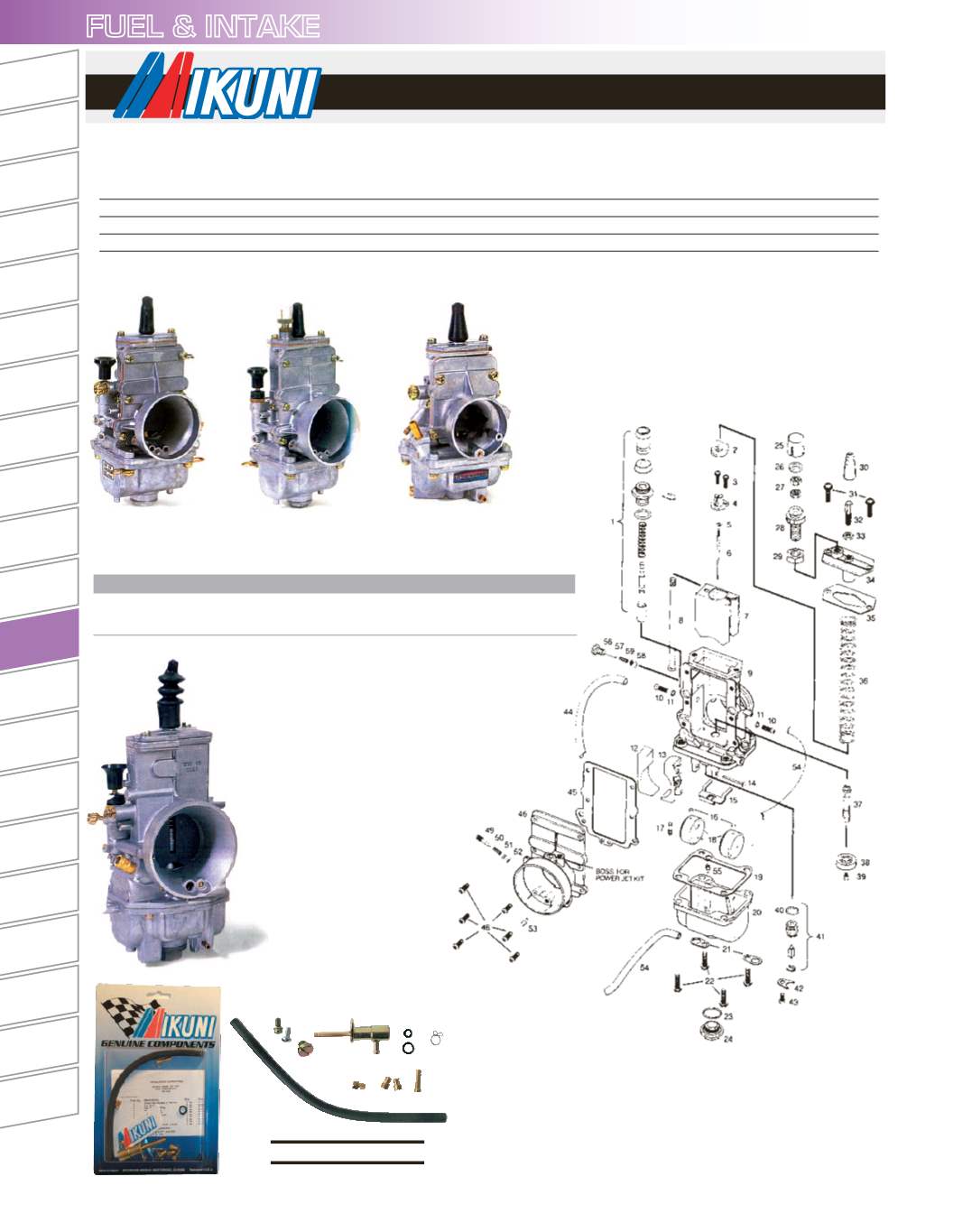

TYPICAL EXPLODED VIEW TM
FLAT SLIDE CARBURETOR
POWER JET KIT
VMPJK 29.95
L
Power Jet Kits are used in two-stroke engine applications to improve midrange throttle
response and add additional fuel to wide open throttle running conditions, especially
with snowmobile clutches. Kits may be installed easily on Mikuni TM and VM Series
carburetors.
TM SERIES CARBURETOR
The TMX features a flat slide design in a smooth bore Venturi
to provide improved throttle response and wider powerband.
The float system with independently moving floats, working
with a main jet enclosed in a baffle chamber, allows the TMX
to perform smoothly without hesitation on the roughest terrain.
TMX Series Carburetors are available in 35mm bore sizes for
125cc race engines, and in 38mm bore sizes for use in
250cc race engines.
TMX35/38MM CARBURETORS FOR
DIRT BIKES AND ATV SERIES CARBURETOR
Mikuni TMX Series Carburetors are
intended for off-road riding and racing use
only. Not legal for sale or use in California
or other locations where similar pollution
laws may apply.
STANDARD SETTINGS
TM24
TM36-2
TM38-85
Carburetor
Needle
Jet
Throttle
Air
Description
Main Jet
Pilot Jet
Jet
Needle
Valve
Jet
PART #
TM24-8001
4/042 130
VM22/210 15
454 Q-0
5N13
832-30006 3.0
.6
TM24
158.95
D
TM32-1
4/042 250
VM22/210 45
389 Q-2 5FP17
832-39012 4.0
None
TM32-1
192.10
D
TM34-2
4/042 280
VM22/210 50
389 Q-2 5FP17
832-39012 4.0
None
TM34-2
180.95
D
TM36-2
4/042 280
VM22/210 50
389 Q-6
6FJ40
832-43002a 4.0
None
TM36-2
204.65
D
TM38-85/47mm
*
4/042 230
VM22/210 22.5
389 Q-2
6FJ41
832-43011 4.0
None
TM38-85
205.75
D
Carb
Main Jet
Pilot Jet
Jet
Throttle
No.
4/042
VM22/210 Needle
Valve
PART #
TM35-1 350
20
6EN11-53 999-832-014-6.0
TMX35-1
207.40
D
TM38-18 370
20
6EJ12-55 999-832-014-3.5
TMX38-18 210.10
D
* SPIGOT O.D.
CARBURETOR PARTS & ACCESSORIES
DIRT BIKE AND ATV
