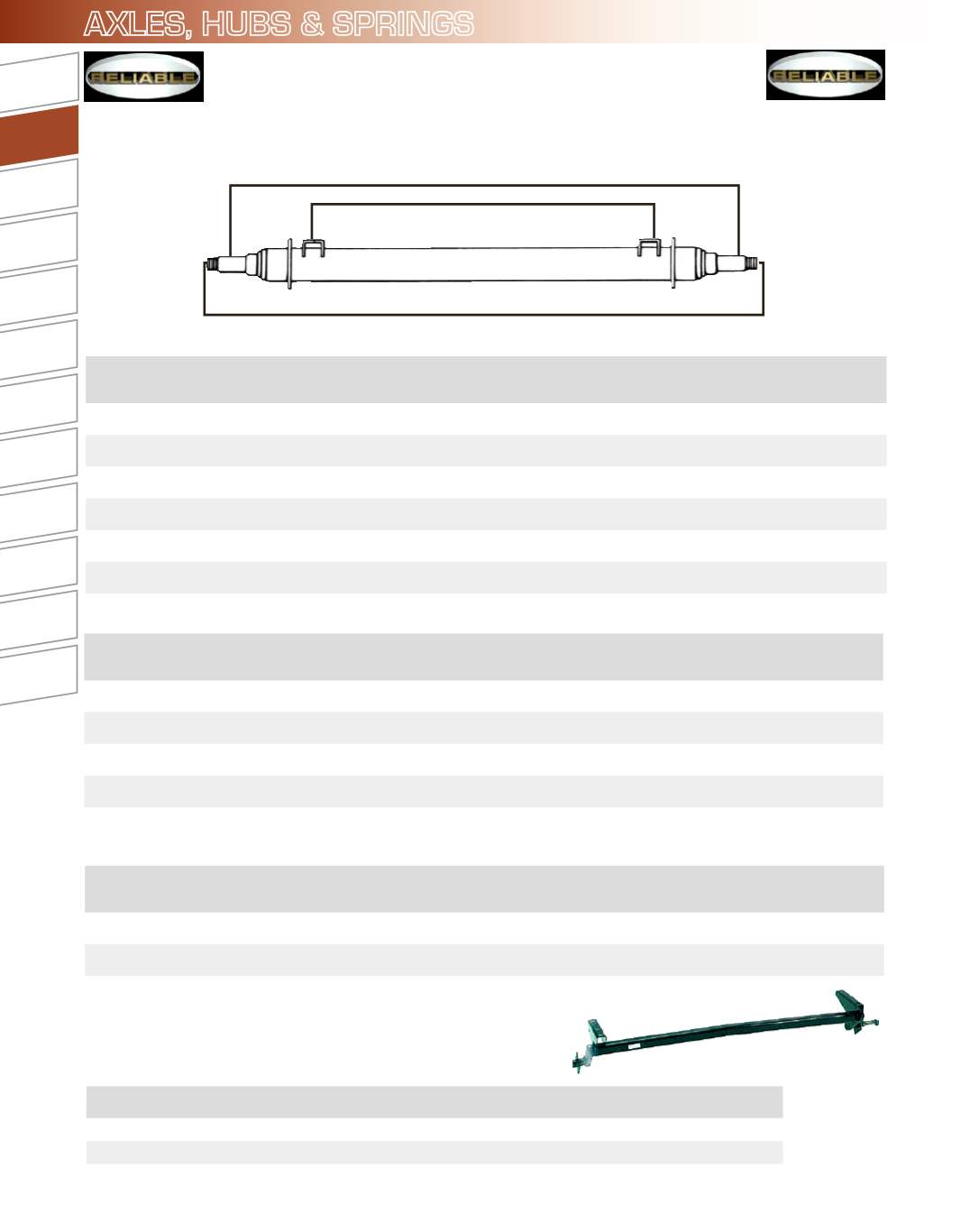

AXLES, HUBS & SPRINGS
20
tires &
wheels
axles, hubs
& springs
tongue
accessories
hitches
electrical
brake
parts
trailer
hardware
locks &
pins
towing &
loading
tie downs
tools
chemicals
TRAILER
RUBBER TORSION AXLES
PART # MFG#
WEIGHT TRACK
WIDTH
OUTSIDE
BRACKETS
AXLE
SIZE
HUB
USED
SPINDLE SIZE
RL3600
RT2000-237
329.95
G 2000#
62"
48"
N/A HSH545
N/A
RL3602
RT2000-236
326.40
G 2000# 73-1/2"
60"
N/A N/A
N/A
RL3604
RT2700-064
355.05
G 2700#
86"
72"
N/A HSH46,56 1" STRAIGHT
• 3 sizes
• All beams are E-coated
• Rubber cushioned inside steel bar absorbs road shock and provides torque
action that improves load handling and reduces shock transfer and trailer swaying
• All axles come cambered with one piece forged spindle and arm
RELIABLE TRAILER AXLES
All axles come with axle nut and cotter pin attached and include
spring seats (loose) that can be mounted over or under.
2000# ROUND TUBE AXLES UNFLANGED "L" SERIES
3500# ROUND TUBE AXLES BRAKE FLANGED "H" SERIES
PART # MFG #
TRACK
WIDTH
SPRING
CENTER
FLANGE
OVERALL
LENGTH
AXLE
SIZE
HUB
USED
SPINDLE
SIZE
BRAKE SIZE
ELECTRIC/ HYDRAULIC
RL3560
SP-3500-60"
126.60
G 60"
42" - 48"
65"
2-3/8" HSH545 1-3/8" - 1-1/16"
stepped
10" X 2-1/4" ELECTRIC
10" X 2-1/4" HYDRAULIC
RL3572
SP-3500-72"
134.70
E 72"
54" - 60"
77"
2-3/8" HSH545 1-3/8" - 1-1/16"
stepped
10" X 2-1/4" ELECTRIC
10" X 2-1/4" HYDRAULIC
RL3584
SP-3500-84"
144.00
G 84"
66" - 72"
89"
2-3/8" HSH545 1-3/8" - 1-1/16"
stepped
10" X 2-1/4" ELECTRIC
10" X 2-1/4" HYDRAULIC
RL3588
SP-3500-88"
145.95
E 88"
70" - 76"
93"
2-3/8" HSH545 1-3/8" - 1-1/16"
stepped
10" X 2-1/4" ELECTRIC
10" X 2-1/4" HYDRAULIC
RL3588D
SP-3500-88"D
220.55
E 88"
70" - 74"
93"
2-3/8" HSH545 1-3/8" - 1-1/16"
stepped
10" X 2-1/4" ELECTRIC
10" X 2-1/4" HYDRAULIC
7000# ROUND TUBE AXLES BRAKE FLANGED
PART # MFG #
TRACK
WIDTH
SPRING
CENTER
FLANGE
OVERALL
LENGTH
AXLE
SIZE
HUB
USED
SPINDLE
SIZE
BRAKE SIZE
ELECTRIC/
HYDRAULIC
RL7086
SP-7000-86"
233.05
H 88"
70" - 74"
92"
3"
N/A 1-3/4" - 1-1/4"
STEPPED
12" X 2" ELECTRIC
12" X 2" HYDRAULIC
RL7090
SP-7000-90"
238.20
H 92"
74" - 76"
96"
3"
N/A 1-3/4" - 1-1/4"
STEPPED
12" X 2" ELECTRIC
12" X 2" HYDRAULIC
TRACK (OUTSIDE FACE OF HUB)
TOP MOUNTED
SPRING CENTERS
STRAIGHT
OVERALL
TOP
↑
NOTE: ALL AXLES MUST BE INSTALLEDWITH CENTER BOW UP.
THE CENTER BOW EXISTS UNTIL WEIGHT IS PUT ON THE AXLE.
PART # MFG #
TRACK
WIDTH
SPRING
CENTER
FLANGE
OVERALL
LENGTH
AXLE
SIZE
HUB
USED
SPINDLE
SIZE
BRAKE SIZE
ELECTRIC/ HYDRAULIC
230052
SP-2000-48"
92.85
E 48" 30" - 38-1/2" 52-1/2" 1-3/4" 230060,
230061
1-1/16" straight
7" X 1-1/4" ELECTRIC
7" X 1-3/4" HYDRAULIC
230053
SP-2000-54"
92.85
E 54" 36" - 44-1/2"
58"
1-3/4" 230060,
230061
1-1/16" straight
7" X 1-1/4" ELECTRIC
7" X 1-3/4" HYDRAULIC
230054
SP-2000-012
106.30
E 60" 42" - 50-1/2" 64-1/2" 1-3/4" 230060,
230061
1-1/16" straight
7" X 1-1/4" ELECTRIC
7" X 1-3/4" HYDRAULIC
230055
SP-2000-64"
108.85
E 64" 46" - 54-1/2" 68-1/2" 1-3/4" 230060,
230061
1-1/16" straight
7" X 1-1/4" ELECTRIC
7" X 1-3/4" HYDRAULIC
230056
SP-2000-72"
113.90
E 72" 54" - 62-1/2" 76-1/2" 1-3/4" 230060,
230061
1-1/16" straight
7" X 1-1/4" ELECTRIC
7" X 1-3/4" HYDRAULIC
230057
SP-2000-84"
122.65
E 84" 66" - 74-1/2" 88-1/2 1-3/4" 230060,
230061
1-1/16"" straight
7" X 1-1/4" ELECTRIC
7" X 1-3/4" HYDRAULIC
