2015 ATV / UTV CATALOG

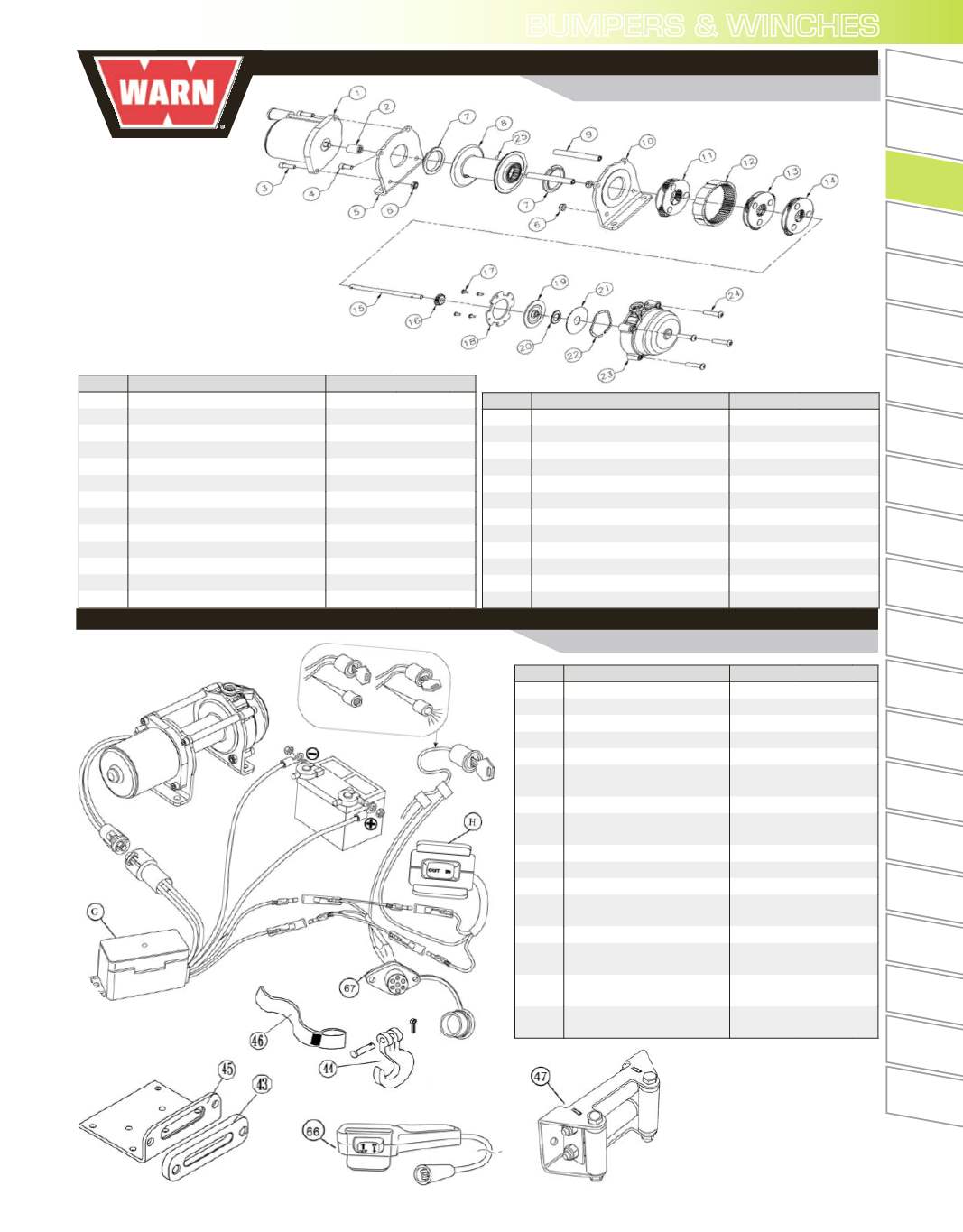

WARNWINCH PARTS BREAKDOWN
1.5CI
REF # DESCRIPTION
PART#
A DRIVE SHAFT KIT
WR69343 19.80
G
B FASTENER KIT
WR69342 15.20
G
C DRUM SUPPORTS
WR69339 25.30
G
D BRAKE SERVICE KIT
WR69327 69.40
G
E CLUTCH PIN KIT
WR69606 20.70
G
F HARDWARE KIT
(INCLUDES LITERATURE)
WR69607 21.15
G
G CONTACTOR
WR69281 100.20
G
H MINI ROCKER SWITCH
KIT
WR69206 48.40
G
J WIRE ROPE 5/32’’ X 50’
WR69336 33.70
G
43 HAWSE FAIRLEAD
WR28930 33.10
G
44 1/4’’ HOOK KIT
WR69329 23.50
G
45 FAIRLEAD MOUNTING
PLATE
WR69901 21.50
G
46 HOOK STRAP
WR69645 4.68
G
47 ROLLER FAIRLEAD
(WARN)
WR28929 45.90
G
66 LOFT REMOTE CON-
TROL
WR64849 64.30
G
67 REMOTE CONTROL
SOCKET HARNESS
WR69648 41.60
G
REF # DESCRIPTION
PART #
1 MOTOR, 1.5CI
WR69344 104.80
G
2 MOTOR COUPLER, 1.5CI
SEE A
3 CAP SCREW 1/4-20 X 7/8
SEE B
4 CAP SCREW 1/4-20 X 5/8
SEE B
5 DRUM SUPPORT MOTOR SIDE
SEE C
6 NYLOCK NUT 1/4-20
SEE B
7 DRUM BUSHING
WR69341 13.20
G
8 ALUMINUM WINCH DRUM
N/A
9 TIE RODS (PAIR)
WR69338 13.20
G
10 DRUM SUPPORT GEAR SIDE
SEE C
11 CARRIER ASSY, STAGE 3
WR69334 25.90
G
12 RING GEAR
WR69335 30.60
G
13 CARRIER ASSY, STAGE 2
WR69331 25.30
G
15 SERIES, 1.5CI
REF # DESCRIPTION
PART #
14 CARRIER ASSY, STAGE 1
WR69328 26.75
G
15 DRIVE SHAFT
SEE A
16 SUN GEAR, STAGE 1
SEE A
17 CAP SCREW 6 X 3/8
SEE D
18 RETAINING BRAKE PLATE
SEE D
19 ROLLER DISK ASSEMBLY
SEE D
20 THRUST ROLLER BEARING
SEE D
21 THRUST WASHER
SEE D
22 WAVE SPRING 2’’
SEE D
23 HOUSING ASSY
WR69326 31.50
G
24 CAP SCREW 1/4-20 X 1-1/4
SEE B
25 WIRE ROPE STOP
SEE J
WARNWINCH PARTS ELECTRICAL BREAKDOWN
