2015 ATV / UTV CATALOG
REF # DESCRIPTION
PART #
1 MOTOR
SEE A
1A SHAFT BUSHING
SEE A
1B BUSHING PLATE
SEE A
2 MOTOR COLLAR
WR69638 22.15
G
3 DRUM SUPPORT MOTOR SIDE
SEE B
4 MOTOR O-RING SEAL
SEE C
5 MOTOR GASKET
SEE C
6 DRUM BUSHING
WR69637 6.30
G
7 X-RING SEAL
SEE C
8 SHAFT COUPLER
SEE D
9 RETURN SPRING
SEE D
10 TIE ROD
WR69639 16.50
G
11 ALUMINUM DRUM
N/A
12 WIRE ROPE 7/32’’ X 55’
WR68851 69.40
G
13 SQUARE NUT 5/16-18
SEE E
14 DRUM SUPPORT GEAR SIDE
SEE B
15 RING GEAR GASKET SEAL
SEE C
16 CARRIER ASSEMBLY STAGE 3
WR69631 27.50
G
17 CARRIER ASSEMBLY STAGE 2
WR69630 28.10
G
18 RING GEAR ASSEMBLY
WR69628 43.50
G
19 THRUST WASHER
WR69629 5.30
G
20 DRIVE SHAFT ASSEMBLY
WR69633 13.10
G
21 CARRIER ASSEMBLY STAGE 1
BRAKE
SEE F
24 BRAKE BUSHING
SEE F
25 CAM FOLLOWER
WR69632 6.76
G
26 CAP SCREW 1/4-20 X 3-1/2’’
SEE E
27 CAP SCREW 1/4-20 X 5/8’’
SEE E
28 CAP SCREW 1/4-20 X 1’’
SEE E
A MOTOR KIT
WR68898 196.20
G
B DRUM SUPPORTS
N/A
C SEAL KIT
N/A
D COUPLER WITH SPRING
WR69634 11.00
G
E FASTENER KIT
WR69626 9.70
G
F BRAKE KIT
N/A
REF # DESCRIPTION
PART #
44 FORGED WIRE HOOK
WR39557 15.60
G
45 FAIRLEAD MOUNTING PLATE
WR69646 27.80
G
46 HOOK STRAP
WR69645
4.68
G
47 ROLLER FAIRLEAD
WR29256 52.60
G
60 BOOT 6 GAUGE
WR69644
4.50
G
61 CABLE 6 GAUGE BLUE 96’’
WR69652 25.70
G
62 CABLE 6 GAUGE YELLOW 96’’
WR69651 25.70
G
63 CABLE 6 GAUGE BLACK 36’’
WR69650 14.10
G
64 CABLE 6 GAUGE RED 36’’
WR69649 21.00
G
65 CONTACTOR
WR76429 108.30
G
66 REMOTE CONTROL 10FT
WR64849 64.30
G
67 REMOTE CONTROL SOCKET
WR69648 41.60
G
68 MINI ROCKER SWITCH KIT
WR64851 52.80
G

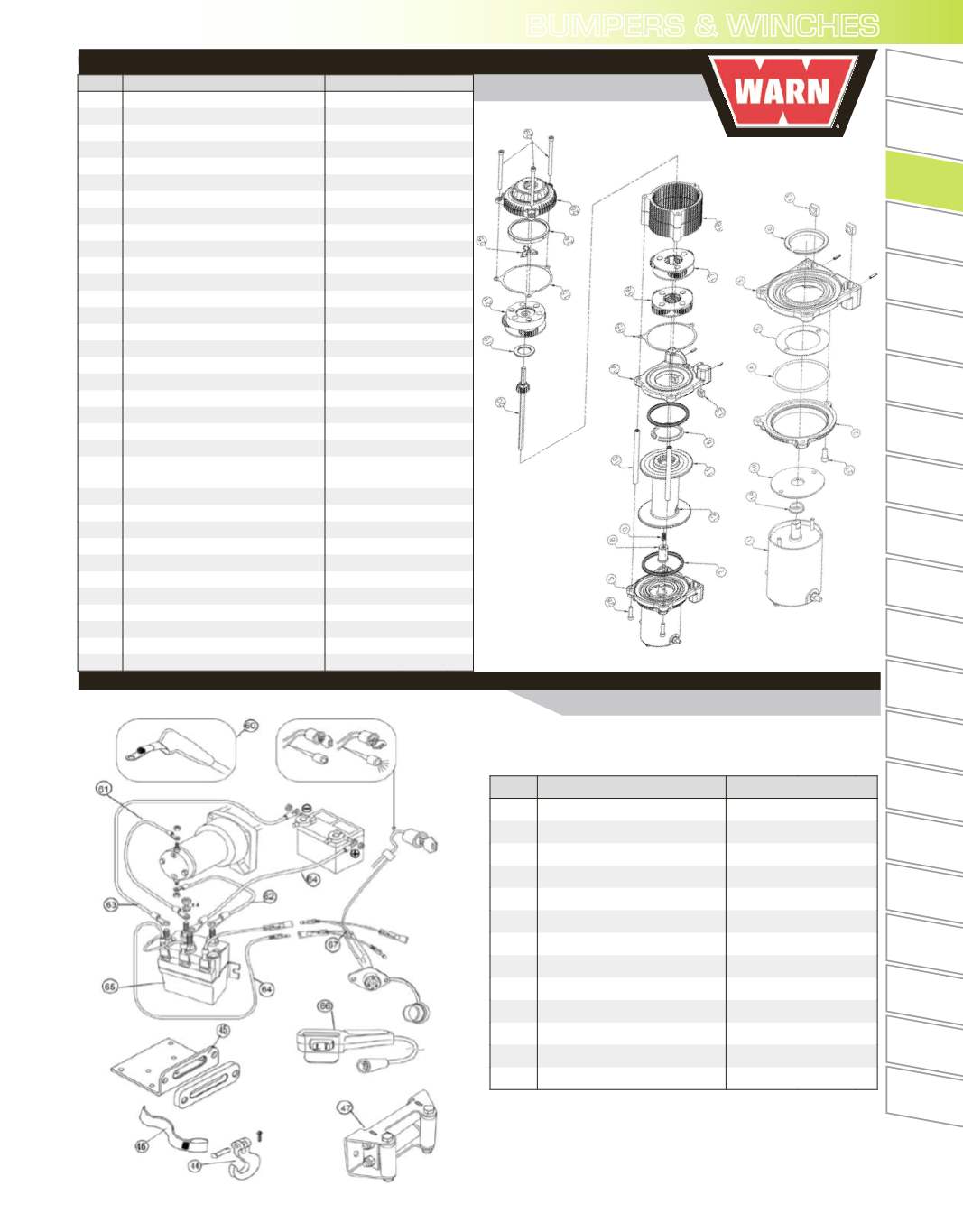

WARNWINCH PARTS BREAK DOWN
4.0CI
4.0CI
WARNWINCH ELECTRICAL BREAKDOWN
