WR74541 208.80
G 1, (2) 20
WR69637 6.30
G (2) 2
WR74925 25.90
G 3, 7, 12, (2) 29, 31
WR74996 31.50
G 4, 5
WR74924 64.70
G 6
WR74998 26.50
G 8
WR75220 22.10
G (2) 10, (4) 19
WR74917 47.40
G 9, 11, (2) 19
WR75005 32.20
G 13
WR75004 32.20
G 14
WR74918 37.40
G 15
WR75003 42.20
G 16
WR75001 32.50
G 17
WR74919 119.20
G 23, 24, 25, 26, 27, 28, (2) 29, (2) 30, 31,
32, (6) 33, 34, 35, 36
WR74921 37.20
G 35, 37
WR74923 53.50
G 24, 25, 26, 27, 28, 31
WR74926 42.90
G 15, 30, 34
WR74930 21.50
G (2) 20, (6) 21
WINCH SERVICE KIT BRAKE ASSEMBLY KIT
WR82459
57.80
G
REF # DESCRIPTION
QTY IN KIT
1 RETAINING RING
1
2 #6 SCREW
6
3
CLUTCH CAP
1
4
WAVE SPRING
1
5 THRUST WASHER
1
6 THRUST ROLLER BEARING
1
7 BRAKE DISK ASSY.
1
8 BRAKE PLATE
1
9 SCREW 4MM X 97.5MM
1
NOTE: TORQUE #6 SCREWS TO 1.8 + / - 0.4 NM (16
+ / - 4.0 IN. LBS.)
REF # DESCRIPTION
QTY IN KIT
1 RETAINING RING
1
2 O-RING (2.9 DIA.)
1
3
WAVE SPRING
1
4 BRAKE PLATE
1
5 THRUST WASHER
1
6 BRAKE DISK ASSY.
1
7 THRUST ROLLER BEARING
1
NOTE: TORQUE M6 SCREWS TO 1.8 + / - 0.4 NM (16 + / - 4.0 IN. LBS.)
REF # DESCRIPTION
QTY IN KIT
1 RETAINING RING
1
2 YELLOW, 1/4 INCH QUAD RING
2
3
YELLOW, 2.9 INCH O-RING
1
NOTE: TIGHTEN M6 - 1.0 SCREWS TO 1.8 + / - 0.4 NM (16 + / - 4.0 IN. LBS.)

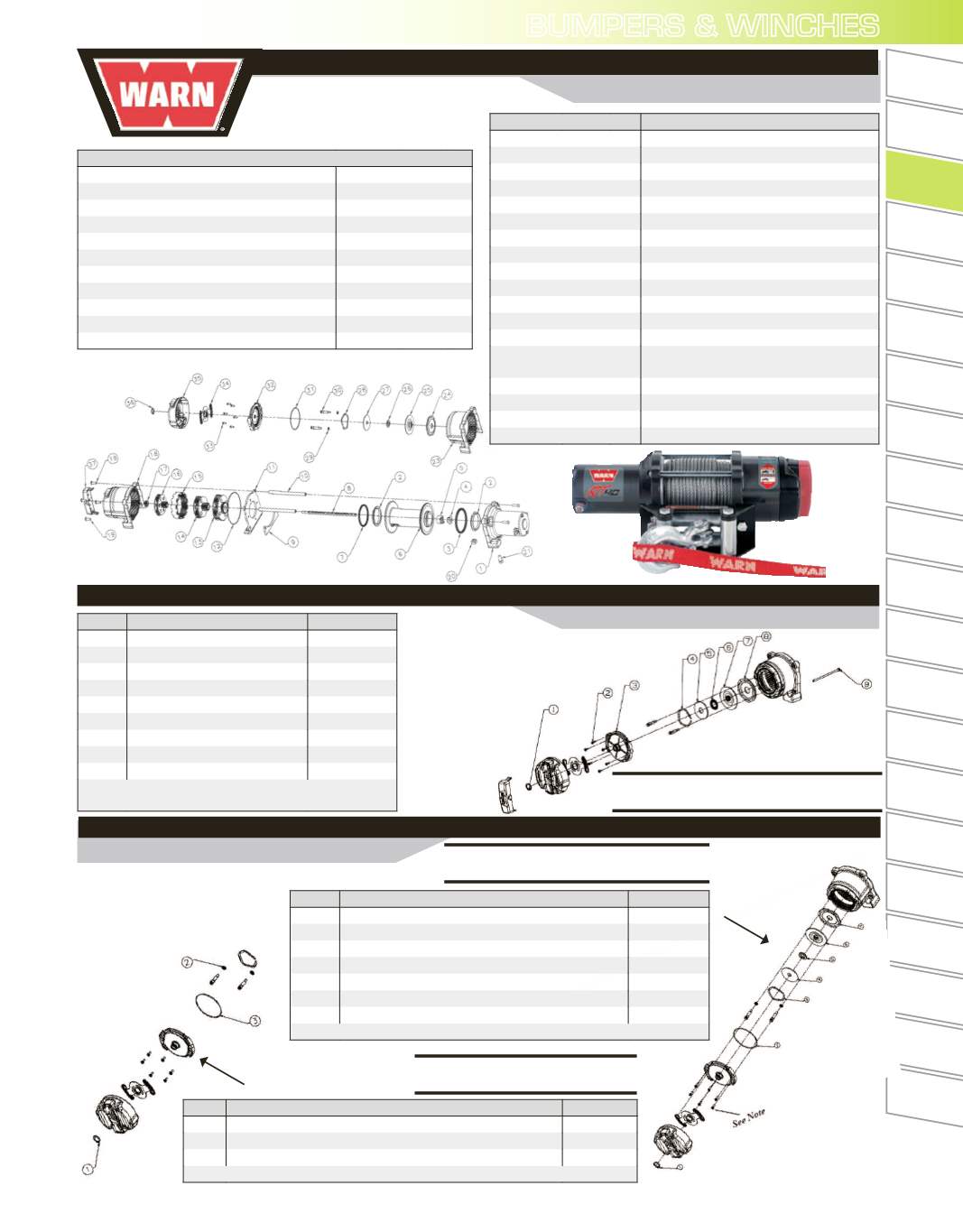

WARNWINCH PARTS BREAKDOWN
RT40 & XT40
SERVICE UPGRADE KITS / WINCH SERVICE KITS
WIRE ROPE ASSY 7/32” X 55FT
WR68851 69.40
G
CONTACTOR, 12 VDC, ALBRIGHT
WR76429 108.30
G
REMOTE CONTROL, 10FT LEAD
WR64849 64.30
G
SOCKET ASSEMBLY, REMOTE CONTROL
WR69648 41.60
G
PLATE, FAIRLEAD MOUNT
WR69646 27.80
G
HOOK KIT, 5/16” CLEVIS W/STRAP
WR39557 15.60
G
STRAP, HOOK
WR69645 4.68
G
SWITCH KIT, MINI ROCKER
WR64851 52.80
G
REMOTE CONTROL, WIRELESS
N/A
CLUTCH SEAL KIT W/SNAP RING
WR80686 24.90
G
DISC BRAKE ASSEMBLY
WR80691 51.40
G
RT & XT 25/30
RT & XT 25/30/40
WINCH SERVICE KIT BRAKE ASSEMBLY KIT
WR80691
51.40
G
WINCH SERVICE KIT / WINCH SEALS
WR80686
24.90
G
WARNWINCH PARTS BREAKDOWN
WARNWINCH PARTS BREAKDOWN
