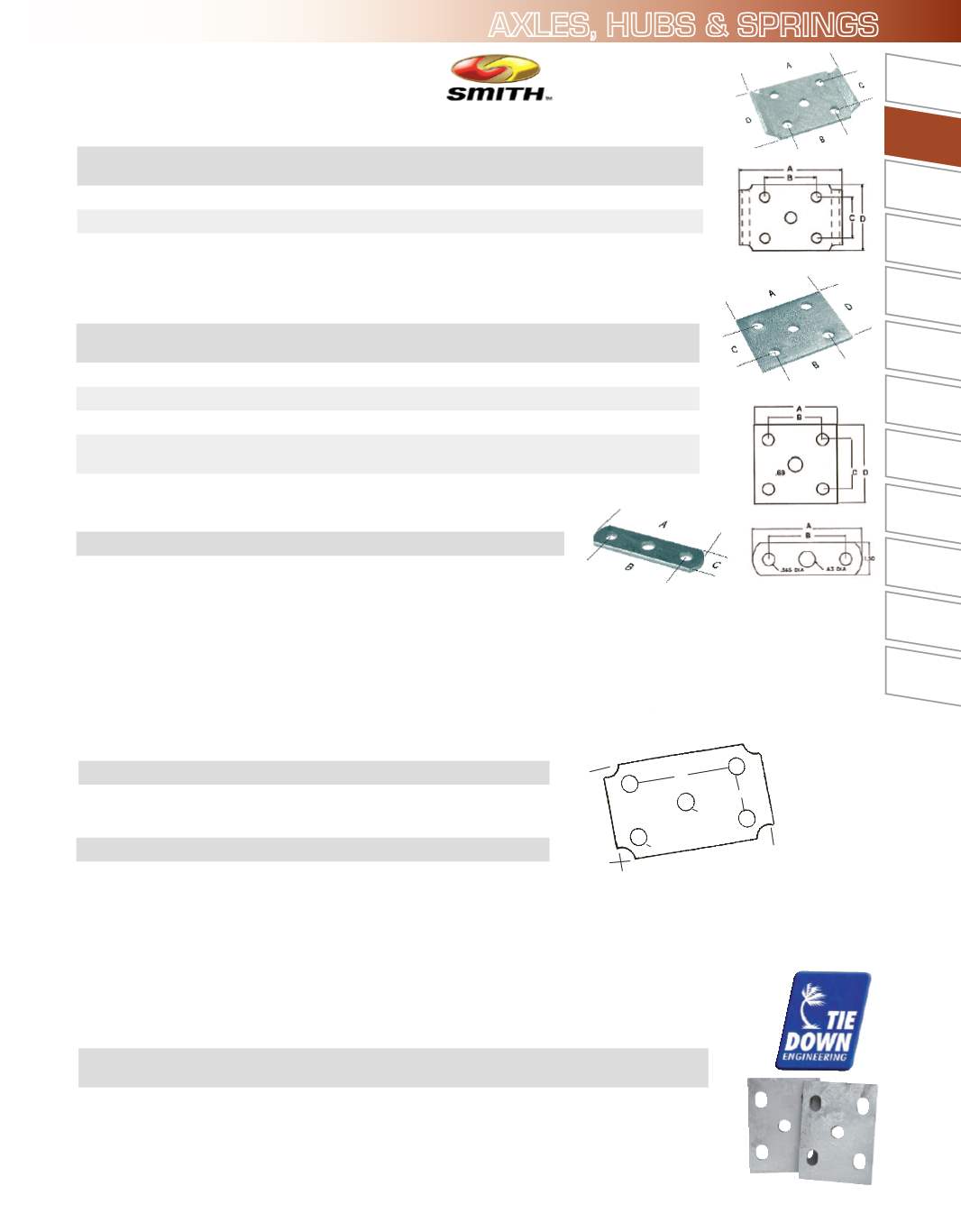

AXLES, HUBS & SPRINGS
35
2015 TRAILER CATALOG
tires &
wheels
axles, hubs
& springs
tongue
accessories
hitches
electrical
brake
parts
trailer
hardware
locks &
pins
towing &
loading
tie downs
tools
chemicals
TRAILER
Sold 2 to a package
FORMED
PART # MFG #
A B C D U-BOLT
HOLE
DIAMETER
U/M
CS20001
20001G 5.83" 2.94" 2.31" 3.75"
1/2"
.56"
EA
5.45
H
CS20003
20003G 5.83" 3.62" 2.26" 3.75"
1/2"
.56"
EA
4.35
H
FLAT
PART #
MFG #
A B C D U-BOLT HOLE
DIAMETER
U/M
CS20015
20015G 3.5" 2.25" 2.25"
3.5"
3/8"
.44"
EA
4.05
H
CS20022
20022G 3.5" 2.25"
2"
3"
3/8"
.44"
EA
1.97
H
CS20023
20023GA 4"
2.63" 2.38" 3.81"
1/2"
.56"
EA
3.80
G
CS20044
20044GA 5"
2.75" 2.38" 3.75"
1/2"
9/16"X13/16"
SLOTS
EA
5.20
G
Galvanized steel • 1/4" thick
SMITH AXLE TIE PLATES
THREE HOLE FLAT
PART # MFG # A B C U-BOLT UM
CS20024
20024G 5"
3.56"
1.5"
1/2"
EA
2.35
H
Oiled Finish • 1/4" Thick • These plates are recommended for 3" round axles • Sold each (bulk)
<------3-1/2"------>
C
D
A
B
<---------------5-7/8"-------------->
AXLE TIE PLATES
PART # MFG #
A B
C D U/M
828864
4201-3
2.3/8" 3-5/8" 11/16" 1/2" EA
4.95
D
TWO HOLE FLAT
PART # MFG #
A B
C D U/M
828474
28-01255-0 N/A 4-1/2""
N/A 1/2" EA
2.10
H
TIE DOWN TIE PLATE
PART # MFG # A B
C D U-BOLT
HOLE
DIAMETER
U/M
LR81186
81186 5" 2-15/16" 2-1/2" 3-3/4"
1/2"
9/16"X13/16" SLOTS PR
8.30
G
